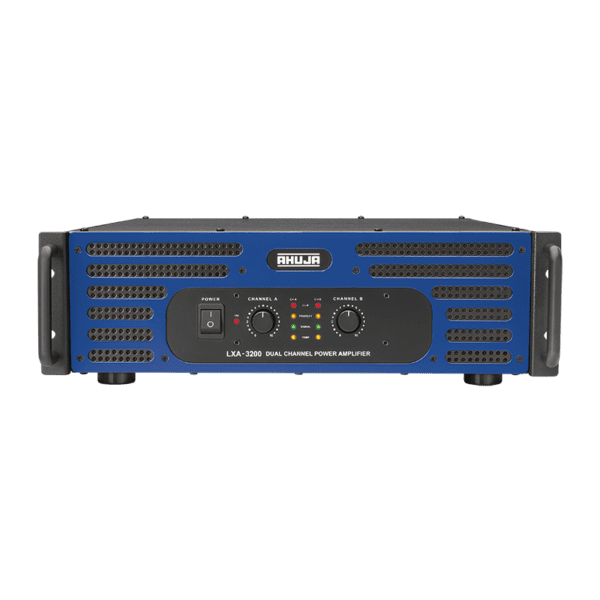

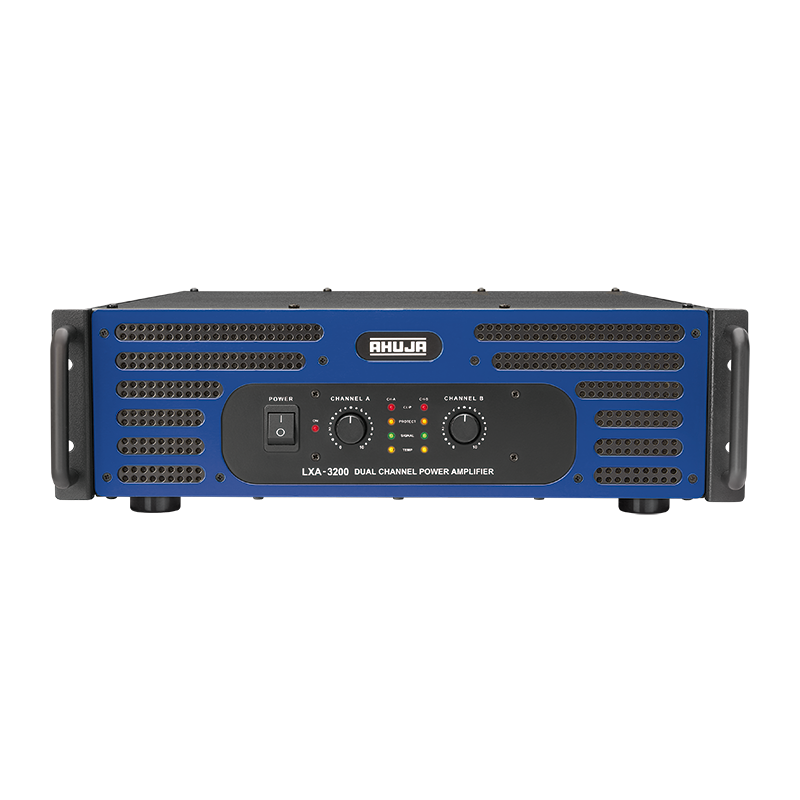

AHUJA LXA-3200 Dual Chanal 3200 watt Power Amplifier

Sale!
AHUJA LXA-3200 Dual Chanal 3200 watt Power Amplifier
AHUJA LXA-3200 Dual Chanal 3200 watt Power Amplifier

Original price was: ₹60,795.00.Current price is: ₹51,929.00. INR

For Batter Price
Item Dimensions LxWxH 48 x 11 x 51 Centimeters
Manufacturer Ahuja, Ahuja
Brand Ahuja
Number of Channels 2

About this item

  • Ahuja DUAL CHANNEL POWER AMPLIFIERS
  • OUT PUT 8Ω : 700W + 700W, 4Ω: 1100W + 1100W 2Ω : 1600W + 1600W
  • Damping Factor 1400 : 1 (2Ω)
Categories: ,

Description

Product information

Technical Details

1600+1600 WATTS

Dual Channel PA Power Amplifier

  • Dual channel direct coupled amplifier.
  • 3200 Watts rated output.
  • Rugged, reliable and designed to work continuously under stringent conditions
  • High fidelity sound.
  • Ideal for high end music programmes.
  • Two selectable input sensitivities.
  • Class H operation for optimum efficiency.
  • Continuous Rated Power .
    Stereo/Mono 8Ω : 700W + 700W, 4Ω: 1100W + 1100W 2Ω : 1600W + 1600W
    Bridged Output 8Ω : 2200W, 4Ω : 3200W
    THD + N < 1.0%
    Frequency Response (-3dB) 20-20,000Hz
    Power Bandwidth (0.5% THD) 20-20,000Hz
    Input Sensitivity 0dBu (775mV), 4dBu (1.23V) (Selectable)
    Input Impedance 10k Unbalanced, 20k Balanced
    Signal to Noise Ratio > 95dB
    Channel Separation > 65dB at 1kHz
    Damping Factor 400 : 1 (8Ω)
    Slew Rate 35V/µs
    Protections Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter AC: Fuse 25Amp. (T 25A L); ± DC: Fuse 2 x 25Amp. (T 25A L) for each channel, Fuse 2×3 Amp. (T 3A L)
    Input Connectors 2 × XLR, Stereo Phone Jack 6.3mm
    Output Connectors Speakon 4-Way and heavy duty Binding Post for each channel
    Cooling Variable Speed DC Fan with Temperature Sensing
    Front Panel Controls 2 × 41 Step Level Attenuators
    Indicators Power ON, Signal, Clip, Temperature, Protect (Ch. A & B)
    Power Consumption (Rated) 3900VA @ 220-240V ~ 50/60Hz
    Dimensions W482 × H153 × D550mm
    Weight 33.00kg

Additional information

Weight 49 kg
Dimensions 48 × 11 × 51 cm

Brand

Ahuja
