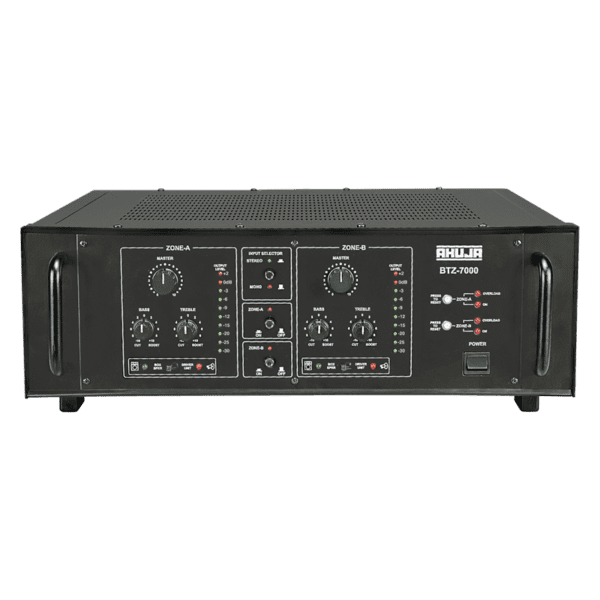

Ahuja BTZ-7000 (700 watt) Dual Zone Power Amplifier

Sale!
Ahuja BTZ-7000 (700 watt) Dual Zone Power Amplifier
Ahuja BTZ-7000 (700 watt) Dual Zone Power Amplifier - Image 2
Ahuja BTZ-7000 (700 watt) Dual Zone Power Amplifier

Original price was: ₹41,870.00.Current price is: ₹36,845.00. INR

For Batter Price
Power Output 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Line L/R 1V/1kΩ
Speaker Outputs 4Ω, 8Ω, 70V& 100V for each zone
Power Supply AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1100VA DC: 13A
Dimensions W510 × H185 × D470 mm
Weight 39.0kg
Category:

Description

BTZ-7000
700 WATTS
2 ZONE PA POWER AMPLIFIER

Stereo Music Operation for DJ programmes.
Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for places of worship.
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
Resettable circuit breaker for protection against overload and short circuit.
Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Instant transfer to DC power (Car Battery) if AC power fails.
Bar Graph Signal Display.



Power Output 500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Line L/R 1V/1kΩ
Speaker Outputs 4Ω, 8Ω, 70V& 100V for each zone
Power Supply AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1100VA DC: 13A
Dimensions W510 × H185 × D470 mm
Weight 39.0kg

Additional information

Weight 40 kg
Dimensions 51 × 18 × 47 cm
